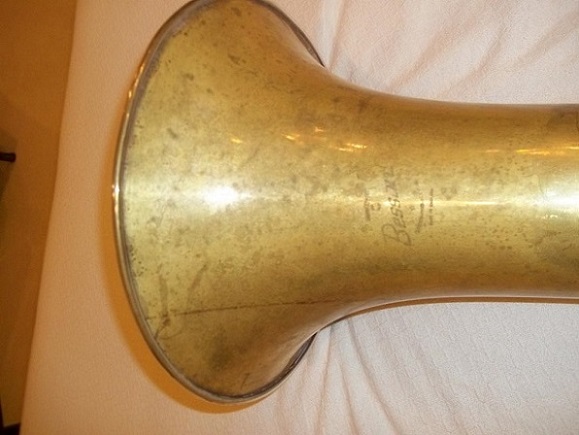

- BessonBell.jpg (145.73 KiB) Viewed 1176 times
- OffsetLeadPipe.jpg (146.82 KiB) Viewed 1176 times
Postby iiipopes » Wed Jul 02, 2014 9:35 pm
OK, first of all, I think for brass band and 99%+ of concert band usage, the original 3-valve compensating tuba, as perfected in the New Standard series with the 17-inch BBb bell, is the best tuba for tone, intonation and support of the ensemble.
The drawbacks: heavy as a tank, and nothing usable below F below open BBb. Modern tuba playing seems to be tolerant of the occasional intonation variance in return for lighter weight and near-pedal tone (Eb below open BBb down to at least CC, if not BB nat) range.
Next, the Miraphone 186. THE workhorse. There are those still who hold the opinion, and are justified, that if it can't be done on a 186, then it just can't be done. I understand that point of view.
The drawbacks: some folks, including me, don't like the "point-and-shoot" tone of the older 16 1/2 inch "stovepipe" bell, nor the "vanilla" tone of the newer 17 3/4 inch bell, nor the "bark" that can happen in the low range. That is all in addition to the elephant in the room: the "flat fifth partials." The postive in all this is that Miraphones are so consistent that we all know that, and if we have to play a gig with a tuba sight unseen, if it is a 186, we can all deal with it and adapt accordingly.
My 186 started life as a @1971 detachable recording bell variant, resurrected from a college write-off, retrofitted with a modified St Pete bell that served for upright, as well as keeping the stock recording bell.
Now, those who have read my previous posts have read how I really liked the St Pete bell, with its wide throat and small flare, as being really dark and leaning towards Alex in tone. The problem over the years is that the tenon and collar damped some of the tone and response, and 1st ledger line Eb 1st valve never centered properly. It was so noticable that I thought for awhile that I may have had a worn valve. No, it was the tenon. Moreover, I actually finally was able to hear that the inherent burble of this configuration actually dulled overall articulation, and I could not lock with the bass drum to keep the band in time as well as in tune.
Second, I really like a souzy for outdoors. As good as the recording bell is, I just never completely got to where I liked it. By definition, it made the tuba top-front heavy, and I could never find the magic balance point. Moreover, since this bell used the stock tuning slide instead of the extended tuning slide, the "flat fifth partials" were more evident with the recording bell, and I finally got to where I did not care to deal with that, either.
One last diversion: when I had my Besson, I had purchased a non-comp hulk so I could have "crash parts" in case something untowards happened. I never needed them, so the hulk resided peacefully in the morgue of my local tech, the bell waiting for its time.
When I traded for my Reynolds 'glass souzy, I decided it was time to do some custom tuba work. I missed the tone of my Besson bell. But I was not going to purchase a 4-valve 3+1. I am left handed playing a right handed tuba, and if I tried to play a 3+1, the left hand would want to take over. I didn't have the $$ for a 993, and I don't like the Besson 19 inch bell, anyway. So I had to think of another solution.
Because the St. Pete bell was effectively shorter than the recording bell, Dan Schultz had already made me an extended tuning slide to make up for it. Funny thing: the longer tuning slide, adding cylindrical tubing at a critical point, almost got rid of the flat fifth partials, while not affecting anything else. That's right: 2nd line B nat 1+2 is good; 2nd space C is right on; middle line Db is lippable, and middle line D can be played either open, lippable, or 1+2, depending on the key signature and which tempering of that note fits better.
Time to do the deed. I went to my tech. I explained what I wanted. We measured and figured. We pulled the old hulk out of the morgue. We measured and figured again. The bell would fit. I told him to go for it. He did. He smoothed out a couple of wrinkles on the flare, trimmed it to fit, and oh, did it fit. The length required for the bell to fit both in length for the existing tuning slide and in diameter to fit the bell stack ferrule on the bottom bow of the 186 was exactly right. We put it together. Wait for it....
TONE - INTONATION - PERFECTION
Well, as close to perfect as a player can have without the compensating valve block. The burble is gone. An extra pound of weight from the tenon was gone. Eb 1st valve centered. Response was immediate. Tone was broad and centered at the same time. Lock with the bass drum was complete. And I got a bonus - check this out: the throat of the Besson bell is a tad smaller than the Miraphone stack, so I got the advantage of having a suspended lead pipe. Burbles are gone. The same positive effect on the fifth partials is still there, if not even better. I can actually play middle line D as I desire without automatically resorting to 1+2. With the St Pete bell, the lowest register could be compressed and play sharp, requiring slide pulling to get the pitch down. No more. Pedal open BBBb is achievable. It is all there. And like bloke opined about the leadpipe on his R-M, I have a small bore, more conical profile lead pipe than a modern 186. It does the same for me as bloke's does for him: better air management, better dynamic control, better tone and intonation.
The only drawback: all my old mouthpieces are now on the shelf. I had to get new mouthpieces. For a smooth, slightly dark, legato tone, bloke's Imperial with a spacer (I was lucky to find a 2-piece model) is the choice. For solo and upper range, a Taku Lite has precise, even intonation. For the "cash register" of community band, I was lucky to find a Griego 325XD that sounds large and round, with even intonation.
EDIT - I have since come to prefer the smoother Imperial, as more "tuba" in tone that "bass bone" in tone. And I don't think I will play that much solo literature going forward. So the Griego and the Taku are out, in favor of the Imperial with the spacer, and a Kelly 18 for spare/backup/inclement weather.
I am very thankful that I have been able over the years to be able to discern what aspects of tubas fit my playing, both through the privilege of playing many instruments and mouthpeices, and a critical analysis of my strengths and weaknesses as a tuba player, in order to assemble what is essentially a custom tuba to fit my playing, the ensembles I support, the repertoire I play, and the tone and intonation characteristics I prefer.
Last edited by iiipopes on Sun Aug 17, 2014 7:20 pm, edited 5 times in total.
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Wed Jul 02, 2014 9:36 pm
And now the closeups on the bell and leadpipe:
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby k001k47 » Thu Jul 03, 2014 12:55 am
Cool tuba! (where's the 'like' button when you need it?)
User avatar
k001k47
5 valves
5 valves
Posts: 1468
Joined: Sun Aug 12, 2007 12:54 am
Location: Tejas
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby dmmorris » Thu Jul 03, 2014 6:03 am
^+1
I miss my Besson! Nice concept and execution.
beta 14??..........OK!
Mid 70's B&S Tuba
User avatar
dmmorris
3 valves
3 valves
Posts: 426
Joined: Fri Mar 19, 2004 8:05 am
Location: From far away as Jupiter sulfur mines, way down by the methane sea.
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Thu Jul 03, 2014 6:05 am
Thanks.
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby Ben » Thu Jul 03, 2014 6:25 am
Fantastic work on this. The tuba looks great. I'd love to hear it, any chance you might volunteer up an auido sample, possibly a pre and post operation one?
Ben Vokits
NYC/Philly area Freelancer
Nautilus Brass Quintet
Alex 164C, 163C, 155F; Rudy 3/4 C
User avatar
Ben
4 valves
4 valves
Posts: 714
Joined: Mon Jan 24, 2011 6:37 pm
Location: NYC
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby chronolith » Thu Jul 03, 2014 6:40 am
She's a beauty. Very nice work!
User avatar
chronolith
4 valves
4 valves
Posts: 553
Joined: Mon Mar 22, 2004 12:26 pm
Location: Chicago, IL
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Thu Jul 03, 2014 9:44 am
I don't think I have any pre- sound samples. I'll see what I can do for a post- sound sample, as I really don't have any software for such. All I can tell you is, as an example pertinent to the holiday, when I opened up on the low Ab for the counter-melody in "National Emblem," before hand, it either burbled or barked. Now it lays the foundation as large as the conductor wants.
I give all my credit to Dan for the long tuning slide, without which the project could not get off the ground, and my local tech who is not only an absolute stickler for doing things right, but has the ability to take a player's description and execute it.
Last edited by iiipopes on Thu Jul 03, 2014 11:19 am, edited 1 time in total.
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby Tubajug » Thu Jul 03, 2014 10:37 am
Very nice! I love me a good franken-tuba! And the casual observer probably wouldn't even notice that this a franken-tuba! It's always great to see people making the instrument they want to play and really going for it. Congrats!
Jordan
King 2341 with a Holton "Monster" Eb bell
Eb Frankentuba in progress
Martin Medium Eb Helicon
Used to own, but still a fun thread: Lyon & Healy Eb
If at first you don't succeed, skydiving's probably not for you.
User avatar
Tubajug
5 valves
5 valves
Posts: 1708
Joined: Wed Jun 10, 2009 5:23 pm
Location: Lincoln, NE
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Thu Jul 03, 2014 11:23 am
My local tech did tell me that with his steady diet of school horn repairs, to have an actual "project" really helped him get through the spring concert/contest season with something to look forward to doing where he could apply himself as well. The bell had some significant wrinkles, and now it almost glistens, with no lacquer - all worn off through the years. I did a serial number search on the bell, and it seems to be @1959-60.
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby GC » Fri Jul 04, 2014 7:20 pm
This makes me wonder how many other modern designs are inspired by Frankentubas. The King 2341 current fixed-bell model comes to mind, and the upcoming Wessex BBb 5/4 horn with an American-style body and compensating valve set are another.
JP/Sterling 377 compensating Eb; Yamaha 66D4, Warburton "The Grail" T.G.4, Stofer-Helleberg, Conn Helleberg 7B; for sale > 1914 Conn Monster Eb (my avatar), ca. 1905 Fillmore Bros 1/4-size Eb, Bach 42B trombone;
User avatar
GC
5 valves
5 valves
Posts: 1747
Joined: Fri Mar 19, 2004 4:52 am
Location: Rome, GA (between Rosedale and Armuchee)
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Sun Aug 10, 2014 12:28 pm
As I have been woodshedding these last couple of weeks to get back in shape for the next season of community bands, I have noticed some items:
1) Rotor alignment - as now configured, the tuba is very sensitive to having exact rotor alignment on the marks when trimming the bumpers. Just a hair off is the difference between good intonation and intolerable stuffiness. It did not seem to be that sensitive before. It may be that the entire tuba is now more "open" without the extra weight of the collar and tenon.
2) Pedal tones - the Besson 3-valve comp I used to own just would not intonate "privileged" tones, and when the detachable bell stack was on this tuba, it would not intonate pedal BBb with either bell, and near-pedal tones effectively gave out at @ 2+3+4 near-pedal D. Now the near-pedal tones and pedal BBb intone well.
3) The more I play the Greigo, the more "trombone-y" it sounds to me, and the more I am liking the Blokepiece Imperial with the spacer better and better. Thanks, bloke!
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Tue Oct 07, 2014 1:26 pm
I had my first two concerts of the autumn season last Saturday and Monday. I played the outdoor Saturday concert with the Kelly 18 and the indoor Monday concert with the Imperial with the modified spacer.
Old habits die hard. Because of the wide throat and the damping of the resonance with the massive tenon on the detachable St. Pete bell and stack, I had always blown a little harder, and a lot harder when I was the only tuba. I forgot and did that, and cracked too many notes now that I have a bell that is more responsive, although not lightweight by any means (traditional Besson "tank-grade" brass). I also want to focus on one mouthpiece, so even though in my other thread I have extolled the virtues of the Kelly 18, and will continue to keep and use two of them, I'm going to get a blokepiece lexan rim to match the Modified Helleberg 32.6MM on my Imperial to reinforce my personal practice in again becoming familiar with a Besson bell.
Part of it may be the inherent characteristics of the lengthy 4th valve circuit of the same diameter tubing on the 186 valve block, part of it may be the characteristics of the bell, but on the 3-valve Besson comp I used to own, 1+3 C was a little stuffy, but low F was open, and everything else was relatively open. On the Bessophone, it is the same: 4th valve C is a little stuffy, low F is open, and everything else is relatively open. So on a descending scale I have to remember to lighten up going from C to open Bb, and be ready to push a little more air going from Bb up to C, just like I used to. It confirms the old proverb that the more things change, the more they stay the same.
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby Untersatz » Tue Oct 07, 2014 11:51 pm
iiipopes wrote:
I'm going to get a blokepiece lexan rim to match the Modified Helleberg 32.6MM on my Imperial to reinforce my personal practice in again becoming familiar with a Besson bell.
Hmm...........seems to me that a Blokepiece "Symphony" might be a better fit with this horn/player???
I use the Modified Helleberg 32.6MM rim on my Blokepiece "Symphony" and it has become my go to mouthpiece
Just a thought, have you tried one???
King 2341 (New Style)
B&S PT-600 (GR55) BBb
Blokepiece "Symphony"
User avatar
Untersatz
4 valves
4 valves
Posts: 657
Joined: Mon Jan 07, 2013 2:52 pm
Location: California
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Wed Oct 08, 2014 1:51 am
TubaMusikMann wrote:
iiipopes wrote:
I'm going to get a blokepiece lexan rim to match the Modified Helleberg 32.6MM on my Imperial to reinforce my personal practice in again becoming familiar with a Besson bell.
Hmm...........seems to me that a Blokepiece "Symphony" might be a better fit with this horn/player???
I use the Modified Helleberg 32.6MM rim on my Blokepiece "Symphony" and it has become my go to mouthpiece
Just a thought, have you tried one???
Yes. I prefer the Imperial, and the slightly darker "ah" as in "father" tone it brings out of the Besson bell. When I remember to not overblow, which I did ever since I got the tuba with the St. Pete upright bell on it and the large tenon, it does everything I could ask for with excellent tone and intonation. I just need to adjust to the different characteristics and slow down the air velocity and not get too tight on the mouthpiece which I tended to do previously. I've tried many mouthpieces on it. My thread of a couple of months ago for the mouthpieces I sold were just a few of what I have tried, having been able to borrow others, and sell even others privately not listed on the forum when they did not work out. I am down to my Imperial as my #1, the Kelly 18's I will keep for spares and inclement weather at least until I get the lexan rim, and one other mouthpiece I may also sell, but have not decided yet, depending if I get another sousaphone.
I had a Reynolds souzy, which as you know has the same bore through the valves as the King and many of the Gnagny creations. The Imperial did not sound good on it, so I used the Kelly 18, which is more like the Symphony in its cup shape, a deep bowl. I can see why with your particular instruments that the Symphony works well for you.
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Tue Feb 17, 2015 10:48 pm
Update: I don't know how it happened, but the Bessophone took a hard hit. I have a couple of minor dings on the first valve circuit, but that doesn't tell the whole story. I started hearing some rubbing in the first valve. I took it to my tech. We thought it was gunk. The valve was clean. But at the community band Christmas concert, I heard and felt the rubbing again. So I took it back to the tech. We popped the valve and saw a wear mark. Not good. So I left it with him.
My tech took the torch to the valve block to relax any tension, and he said he heard a loud "POP!" He removed the heat, and the rubbing noises in the valves went away. Whew! Nobody wants to replace a rotor valve and casing. I still have great compression on the 1st valve, and everything else in the valve linkage seems better overall.
There is one negative detail: the first valve tubes seem to have come out of alignment; pulling and pushing the 1st valve slide as necessary seems to be a little rougher than before. But I'm going to deal with it this season and have it looked at after the Memorial Day concert when I will not be playing any gigs in June, but will need it for any Independence Day (or the week or two before or after) gigs.
These last few rehearsals at community band I have noticed a few changes in the playing characteristics: 1) overall, the response is better; 2) slurs are easier. I had chalked the difficult slurs off to out-of-shape embouchure, but slurs are much better overall (this indicates to me there was a tight brace or valve casing that impeded anti-nodes); 3) a little bit of the "flat fifth partials" characteristic of a 186 bugle are back, but not bad. I will probably still use 1+2 on mid-line D for long notes, but runs and quick notes are not out of tune so bad that open mid line D is still usable.
I'm wondering if when the tuba was rehab'd before I got it, if the tubing was pulled into place to align the inner tubes, causing tension, as there seems to be a slight discontinuity in the angle of the outer/lower tube and elbow joint to the first valve circuit. I don't know if it is worth fixing, as little as I use the first valve slide.
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Fri Apr 10, 2015 12:46 am
It's been awhile. Everything is doing great. I have re-joined another regional community band that was just too difficult logistically for the last couple of years until some other aspects I needed to sort out happened. The section consists of another person with a St. Pete BBb, which sound good like it should, a friend with a 1920's Conn bass saxophone, a bass guitarist who plays on a couple of songs, and me. I think we're all set for the summer schedule, which includes an Independence Day celebration concert.
But that's not why I posted. This evening, it's all about mouthpieces. As you know from my signature, I play a 2-piece blokepiece Imperial with a lexan 32.6 modified Helleberg rim, and a spacer cut down from .160 to .080. It is great.
But "All Those Years Ago," when I had the Besson 3-valve comp, I used a Wick 1. That combination is still my favorite for pitch, intonation and tone. It was just dead on. Period. So long as you don't need anything below low F 1+3. So I wondered what a Wick 1L would be like on the Bessophone. When I had the St. Pete bell, a Wick 1L was just so big and dark that I lost definition and needed a third lung because of the large throat. So I wondered if the Besson bell would bring back more definition of tone with that mouthpiece. Well, it did not. The other tuba player tonight had a Wick 1L which he let me borrow for the rehearsal. It was still big and dark, almost flabby in the low register. Worse, everything above 3rd space Eb 1st valve was flat. I don't mean a little bit flat like flat-fifth-partial flat. I mean FLAT - as in a quarter to a full half step flat!
Now, this was towards the end of rehearsal, so I wondered if it was fatigue instead. So I put the blokepiece Imperial back in, and pitch all came back as it should be.
Moral of the story: when you get a good combination of instrument and mouthpiece, it is very good. And when you get a bad one, it is horrid. There are so many variables, that generalities just do not work and cannot predict how a particular combination will intone or sound.
But when it is good it is very good. Thanks again, Bloke!
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Sat Aug 01, 2015 10:16 am
Update: recently a friend of mine borrowed The Bessophone to play a brass quintet concert. I attended the concert. That was the first time I had actually gotten to hear it out front. WOW! I will put its tone and intonation up against any tuba in the world, from a $100 garage sale find, to any of these $30,000+ "custom" tubas. Its core, breadth, intonation and foundation were even better than I had hoped for, and provided that warm, enveloping, but not overpowering, foundation that absolutely locked the rest of the quintet in for a great concert. It was quite a pleasure, because, of course, you can never tell sitting under the bell exactly what it does out front.
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Tue Jan 19, 2016 9:05 am
I forgot to add in the initial post, which I was reminded of when I read the thread on soldering coins to the paddles, that my tech and I, a couple of years before we changed the bells, custom tailored each of the paddles. He took the paddles off, aligned the tangs for breadth and height, then we resoldered the paddles for length and finger fit.
Then we adjusted the angle of the leadpipe to accommodate my slight overbite.
Now, just as with tailored clothing, I do not have to "fiddle" with anything. I just play. And play. And play. Everything fits me perfectly. Yes, if I ever had to sell the horn, that might drop the price a couple hundred because the next player would need to have the paddles and receiver re-aligned for his/her personal ergonomics, but the return on gigs in the meantime is definitely worth it.
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby Three Valves » Tue Jan 19, 2016 11:06 am
I love it when a plan comes together!!
Who needs four valves??
Mack Brass Artiste
MackBrunner 210L
TU25
User avatar
Three Valves
6 valves
6 valves
Posts: 4230
Joined: Wed Jan 07, 2015 8:44 am
Location: The Land of Pleasant Living
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Sat Aug 01, 2015 10:16 am
Update: recently a friend of mine borrowed The Bessophone to play a brass quintet concert. I attended the concert. That was the first time I had actually gotten to hear it out front. WOW! I will put its tone and intonation up against any tuba in the world, from a $100 garage sale find, to any of these $30,000+ "custom" tubas. Its core, breadth, intonation and foundation were even better than I had hoped for, and provided that warm, enveloping, but not overpowering, foundation that absolutely locked the rest of the quintet in for a great concert. It was quite a pleasure, because, of course, you can never tell sitting under the bell exactly what it does out front.
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Tue Jan 19, 2016 9:05 am
I forgot to add in the initial post, which I was reminded of when I read the thread on soldering coins to the paddles, that my tech and I, a couple of years before we changed the bells, custom tailored each of the paddles. He took the paddles off, aligned the tangs for breadth and height, then we resoldered the paddles for length and finger fit.
Then we adjusted the angle of the leadpipe to accommodate my slight overbite.
Now, just as with tailored clothing, I do not have to "fiddle" with anything. I just play. And play. And play. Everything fits me perfectly. Yes, if I ever had to sell the horn, that might drop the price a couple hundred because the next player would need to have the paddles and receiver re-aligned for his/her personal ergonomics, but the return on gigs in the meantime is definitely worth it.
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby Three Valves » Tue Jan 19, 2016 11:06 am
I love it when a plan comes together!!
Who needs four valves??
Mack Brass Artiste
MackBrunner 210L
TU25
User avatar
Three Valves
6 valves
6 valves
Posts: 4230
Joined: Wed Jan 07, 2015 8:44 am
Location: The Land of Pleasant Living
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Mon Jun 27, 2016 3:27 pm
Further update: I mentioned this in another souzy thread, but never brought it over here. The Reynolds 'glass souzy and I never melded. So I sold it. My tech had all the parts to a Selmer Signet 'glass souzy - the "poor man's 36K" and he put it all together for me for a great deal to free up space in his morgue for the more common makes and models. I like the way it blows better, probably from the years with the Bessophone, the .730 bore Besson 3-valve comp I used to own, and the various other .734 Conn souzys I have owned or played otherwise over the years.
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Tue Mar 21, 2017 10:33 am
The continuing saga: I got an offer on the Selmer 'glass souzy I couldn't refuse, so it left. Down the road, as I may need a souzy for outdoors or other gigs, I know where to borrow a Conn Cavalier. I played it years ago before I got the Bessophone, and it is quietly slumbering in a good spot, ready for action on a few minute's notice to oil valves and grease slides. It has already had the conversion done to the upper first valve loop for intonation, which, with the permission of the owners, I had done years ago - the first souzy I had this done to.
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby shinytuba7 » Sat Apr 14, 2018 11:25 pm
iiipopes, the pictures seemed to have been removed from this thread. Would someone interested in seeing the aforementioned horn be able to find pictures of it somewhere else?
Mirafone 185
Mouthpieces FS/FT
shinytuba7
bugler
bugler
Posts: 145
Joined: Sun Jul 12, 2009 10:50 pm
Location: CT
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby shinytuba7 » Sun Apr 15, 2018 5:27 pm
bloke wrote:
extremely truncated summary:
Besson/B&H and Yamaha 201/321 bells fit on Miraphone 186 tubas.
Awesome, thank you, bloke and elephant, for your replies. Bits of information that I wanted to know!
Mirafone 185
Mouthpieces FS/FT
shinytuba7
bugler
bugler
Posts: 145
Joined: Sun Jul 12, 2009 10:50 pm
Location: CT
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Fri Jul 13, 2018 12:48 pm
Further update: I got an offer on the Bundy/Selmer Signet I could not refuse and sold it.
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Wed Aug 07, 2019 1:03 pm
Repost of the Bessophone pix lost some time ago:
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby anotherjtm2 » Mon Dec 30, 2019 8:29 pm
Thanks for the new pictures.
That tuning slide is loooong. I have a Yamaha 201 bell on my BBb 186, and it needs a longer slide, but only by a couple inches (on each leg). And it does indeed help with the flat 5th partial :)
John Morris
- playing modest old tubas in volunteer ensembles (including a vintage BBb 186 for sale)
User avatar
anotherjtm2
bugler
bugler
Posts: 229
Joined: Sun Mar 17, 2019 11:18 am
Location: Austin, Texas
Top
Re: Ladies and Gentlemen - The Bessophone!
Postby iiipopes » Sun Mar 08, 2020 6:36 pm
bloke wrote:
186/188 fifth partial pitches (B-flat or C) are pretty squishy (flexible, without losing any resonance when flexing them) anyway.
With my 50-year-old C 186, the only 5th partial pitch that is flat is D (requiring #1 slide all the way in, pretty heroic "lipping", or 4th valve).
The other 5th partial pitches are-or-nearly-are spot on, requiring no "squishing". I suppose (??) this is sorta like the 1st valve C on the Conn 14K sousaphone...except that C is much worse than my D.
Yeah...It's obvious that Miraphone - in 1969 - was aware of the 1st-valve D issue. as the #1 circuit is just short enough (in all the way) to address it.
(As I ONLY really have to push #1 IN for in-the-staff D...and ONLY have to pull out #5 for really-low D, I've imagined a wild left-hand-operated contraption that - when depressed - SIMULTANEOUSLY pushes in #1 AND pulls out #5. :lol: )
Bloke - always working the "problem"!
"Bessophone" w/ 2-piece Imperial Blokepiece,
Lexan 32.6 Modified Helleberg rim & modified .080 extender
Wessex BR115 & B&H 3-valve comp w/ Wick Ultra SMB6
King Super 20 trumpet w/ Bach 3C/76
Fanned fret bass and electric guitars
User avatar
iiipopes
Utility Infielder
Utility Infielder
Posts: 8384
Joined: Mon Sep 05, 2005 11:10 pm
